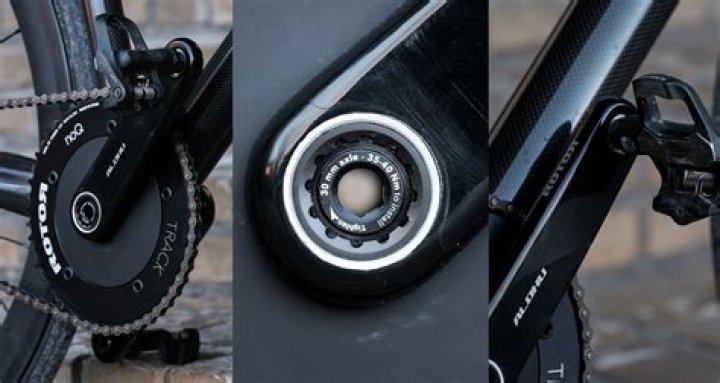

Cranks are levers that connect the pedals to the bottom bracket spindle. The cranks are fitted with toothed sprockets called chainrings that drive the chain. Cranks may be removed to replace cranks or chainrings, service the bottom bracket bearings, or to clean the chainrings.

What is the crank length on a bike?

The crank length represents the distance between the centre of the bottom bracket and the centre of the pedal axis. The most common lengths are 170, 172.5 and 175 mm, but it is possible to find cranks between 165 and 180 mm in the market.

How do you measure a crank on a bike?

Crank Measurements

To determine the crank length on your bicycle, measure the distance from the center of the crank bolt that connects the crank to the axle, to the center of the pedal spindle that connects the pedal to the crank. It may be easier to get an accurate measurement if you remove the pedal from the crank.

What is 3 piece crank on bike?

3 Piece Cranks

3 piece cranksets include 3 elements – 2 separate/free crank arms plus a spindle/axle.

How do I know what size crankset to buy?

Crank length is measured from the centre of the bottom bracket axle to the centre of the pedal axle. If you're not sure what length the cranks on your bike are, the quickest way of finding out is typically to just look at the backside of your cranks, just below the pedal axle.

What is a 2 piece crank?

What Is A 2-Piece Crank? The 2-piece crank has two distinct parts, a free crank arm plus a crank arm with a spindle attached to it. Also, the two-piece crankset has an integrated crank arm and a bottom bracket used to increase rigidity with less weight.

What does a crankset include?

The crankset, also called the chainset, consists of crank arms, bottom bracket, and chainrings.

Will shorter cranks help my knees?

Pain is relieved. Just by installing shorter crank arms, without any other adjustment, the knee at maximum flexion is lowered by 7.5 mm. That difference provides approximately 3° to 4° of relief.

Does crank length affect power?

You could expect a power difference of about 1% based on the difference in crank length. So if your crank arms are not 172.5 mm, you will want to set the correct crank arm length. Setting your crank arm length is easy to do.

What is the crank length in slab?

Crank is a slight bending in bars at the lap so that maintains the clear cover even at the lap position. The rule that is generally practiced is that the slope of crank 1:10 & minimum length of crank 300 mm.

Does bike crank length matter?

Crank length can be used as a tool to improve fit related issues impacting comfort, power, and aerodynamics. Moving to a shorter crank can improve: Comfort: A shorter crank length reduces range of motion at the knee (extension and flexion), hips, and low back.

Are longer crank arms better?

As you'll know from using a crowbar or a wheelbarrow, the longer the lever, the greater the load that can be lifted; so a longer lever arm allows a rider to create more torque than a rider with similar leg strength, but a shorter lever arm. But there's more to going faster than driving a big gear.

Why are my crank arms so short?

If the gearing isn't adjusted, the shorter crank arm effectively gives a harder gear in terms of the force required at the pedal to create a given propulsive force at the wheel, potentially leading to more strain on the body when you run out of gears.

Are longer crank arms better for climbing?

There is no rock-solid formula for determining crank length, saddle height, top tube length, or any of those things. There are general rules of thumb, but there are a lot of different confounding factors such as your preference for climbing making it possibly more beneficial to err on the side of a longer crank.

What is a bike crank made of?

Cranks are constructed of either an aluminum alloy, titanium, carbon fiber, chromoly steel, or some less expensive steel. Tubular steel cranks (such as Tioga's Revolver) can be light and very strong, are usually found on BMX bikes, and are slowly finding their way to mountain bikes (dirt jumping and urban assault).

How is a bicycle crankset made?

A method of manufacturing a metal bicycle crank arm comprising the steps of: providing a core having a specific gravity lower than a specific gravity of metal to be poured; positioning the core into a casting mold so that a melt space is formed around the core; pouring molten metal into the casting mold; and ...

Can I put any crankset on my bike?

Cranksets are not always interchangeable. Every crank is designed to work with a specific bottom bracket. Even if the cranks use the same interface (octalink, square taper, or hollow tech), switching them between bike brands or even models of the same brand is hard.

How does crank length affect bike fit?

'Shorter cranks will almost certainly help most riders be more comfortable on a bike,' he adds. 'They help soften the impact of cycling on the body. Think about it: the equation is 2πr, so crank length changes that circle significantly, and going shorter appreciably reduces the range of joint movement.

Does crank length affect saddle height?

This means that if you try shorter cranks you add the difference to the seat height measured from the center of the bb, with longer cranks you subtract the difference. This maintains the same seat to pedal length. Everything else being the same, shorter cranks = higher saddle, longer cranks = lower saddle.

How does crank arm length affect riding?

Shorter Length Benefits

This would be the same as an athlete pedaling a 145mm and 195mm crank at 90rpm. With the 195mm crank length, the foot speed is higher to cover the revolution at 90rpm compared to the 145mm length. Most report that when they switch to a shorter crank their cadence increases.

Are 3 piece cranks better?

Three-piece cranks are generally lighter, stronger, and have the widest assortment of pedal types (9/16") and bottom bracket applications available to them. In the case you DO damage a crank arm, replacements are often available without purchasing a whole new crankset.

What are three piece cranks?

3 Piece Crank

As you might have guessed these are made of three pieces – 2 arms and spindle. The thread used to attach the arms is 9/16 inch. These are considered to be tougher and more durable than the 1 piece. In outdoor bikes a 1 piece crank is usually used for kids bikes and some lower end adult bikes.

What is hollowtech crankset?

HOLLOWTECH technology is an ultra-lightweight hollow crankarm created by SHIMANO with the company's own proprietary forging technology that also maintains rigidity.
